NICE ROBUSKIT 400 MOTOR KIT
- Free shipping No tax
- FEDEX : 0,00 €
Nice ROBUS 400 sliding gate motorization kit
Nice ROBUSKIT Robus 400 motorization kit
It is a rack and pinion motor for sliding gates up to 400 Kg.
Partial opening, adjustable execution speed at the start and end of the maneuver allow you to take care of the gate.
Easy to install, its BlueBUS system allows a connection with only two wires, between the motor, the photocells, the control devices as well as the safeties and signals.
It incorporates obstacle detection and a self-diagnosis system with signaling by means of a flashing light.
The motor is fitted with a temperature sensor enabling it to adapt its force to climatic conditions (wind, frost) by simultaneously adjusting its thermal protection.
Its control box has a housing with a quick connector for a backup battery (not supplied).
The Nice NIFRSIR6MD rack is not included in the kit.

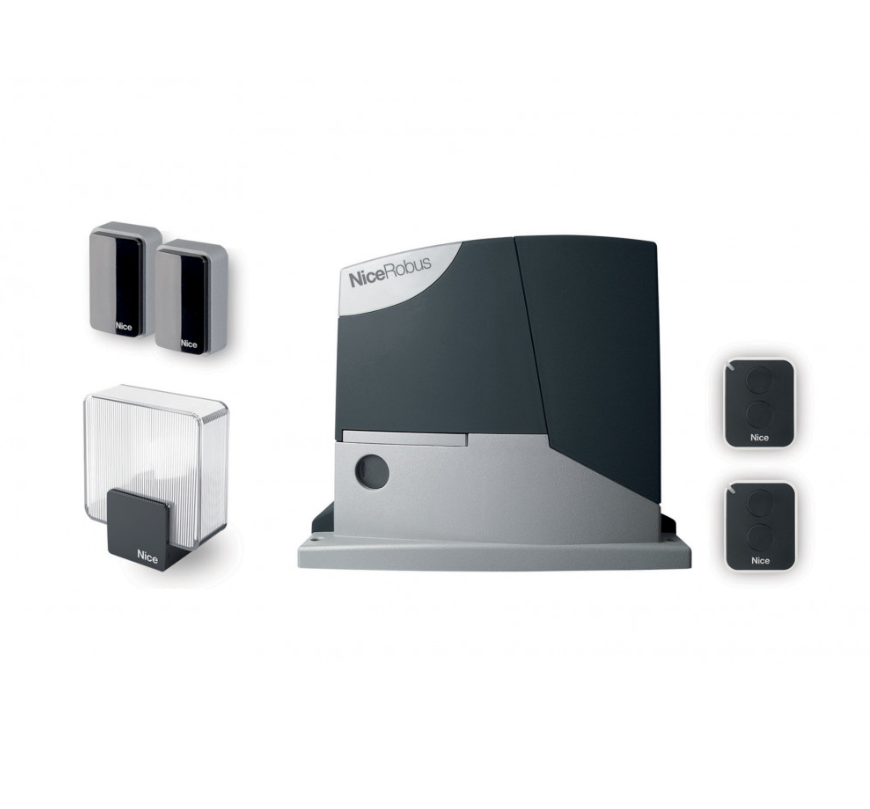

This kit contains:
1 Nice robust 400 engine
1 OXIBD receiver
2 ON2E 2-channel 433.92 MHz remote controls
1 pair of EPMB photocells
1 flashing light with ELDC antenna
1 road sign
Compatible accessories:
Back-up battery to compensate for power outages
Radio code keypad for a second control point
Solar powered for autonomy and isolated locations
Technical sheet
Warranty period: 2 years
Type of range: Professional
Compatible gate type: Sliding gate
Maximum weight of a leaf: 400 Kg
Technology: Radio Nice
Radio frequency: 433.92 MHz
Power supply: 230 Volts
FURTHER INFORMATION
Compatible portals
Maximum weight = 400 kg.
Discharge right or left.
Facility
Key selector
Photocells on column
Photocells
Fixed primary edge (option)
Movable primary edge
“Open” limit bracket
rack
Fixed secondary edge (optional)
Flashing light with incorporated antenna
ROBUS
“Closed” limit bracket
Movable secondary edge (optional)
radio transmitter
RBA3 electronic card
-
The RBA3 control logic is incorporated directly into the Robus 400 motor included in the KIT.
In particular, it will allow you to control:
The pause time before the automatic re-closing of the gate
Engine speed during normal running
The power of the motor to adapt it to the weight of the gate
The number of maneuvers after which the automation maintenance request must be signaled
The list of anomalies checked during manoeuvres.Note: the RBA3 control unit is also compatible with the Robus 600.
| color | White |
| Size | 7 |
| Regular | cm |
| Brand | nicefrco |
| Status | New |
| Energy Input | 230V |
| Power (W) | 70w |
| Speed | 25 CM/S |
| Force (N) | 400 |
| Suitable for Intensive Use | Yes |
| IP Protection Class | IP44 |
| Operating Temperature (°C MIN/MAX) | (-20) ÷ (+50) |
| Max. Supported Gate Length | 7 meters |
| Security Mode: | Fail Safe with Signal |
| Model Number: | PYM-X2208 |
| Origin | CN (origin) |
| Certification | CE |
| Smart home platform | Other |
| Input Power | AC220V |
| Rated motor power | 130W |
| Working temperature | -20°C~+55°C |
| Feed rate | 9 m/min |
| Frequency | 50 Hz |
| Operating temperature (t-t) | -20 - 55 °C |
| Power consumption (typical) | 400 W |
| Power supply voltage | 230 V |
| Product type | Kit |
| Motor voltage | 24 V |
| Limit switch type | Magnetic |
| shipping | 0, free |
| country | italy |
| material | iron, Metal, plastic |
| energy efficiency class | A+++ |
| min energy efficiency class | A+++ |
| max energy efficiency class | A+++ |
